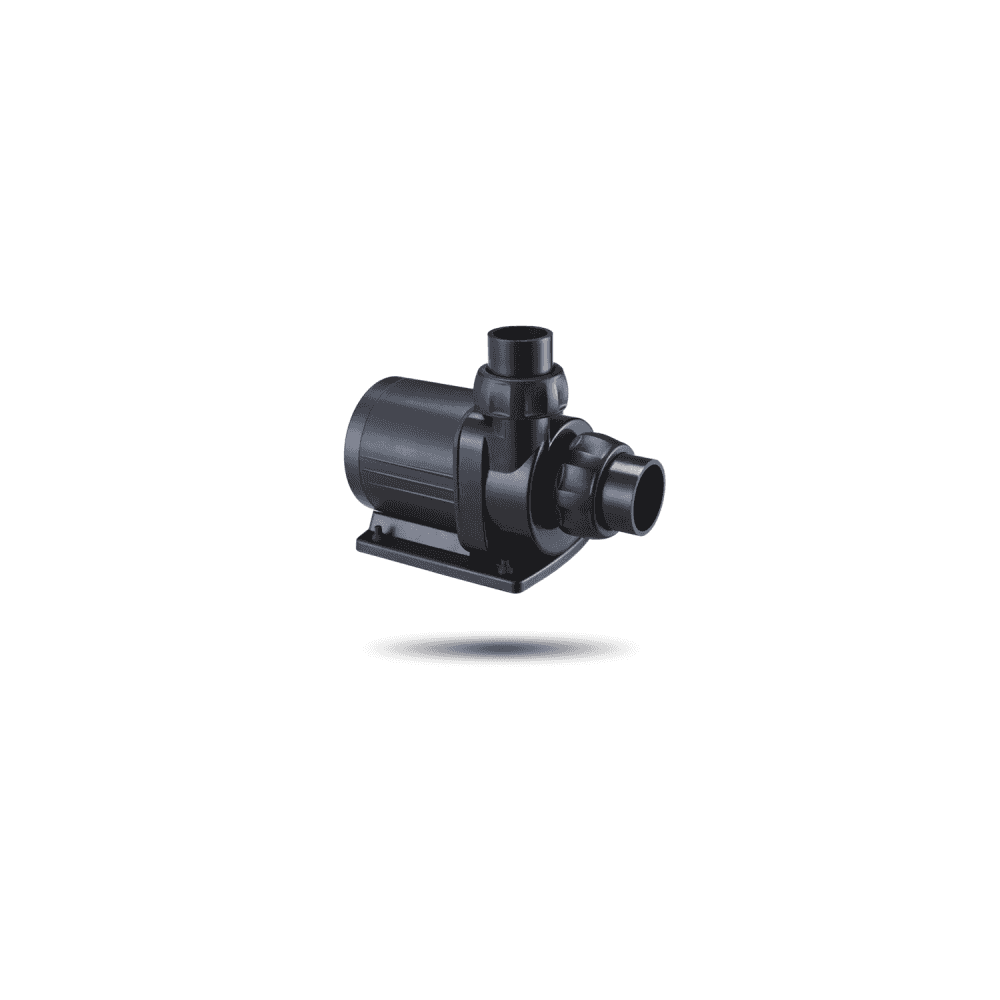

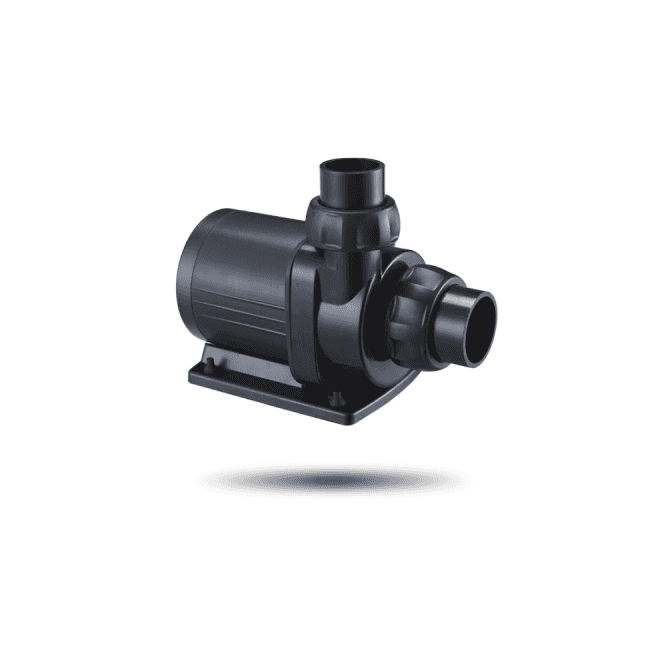

D-D Aquarium Solutions Jecod DCP-20000 Return Pump

Jecod 'Professional' Range DCP Pumps

These new pumps improve on the previous DCP pump design as follows:

• Sine Wave controller technology provides super quiet operation
• New Digital Controller- Speed Control Settings Between 30%-100% in 1 Watt increments
• Digital display of power consumption.
• Suitable for external and internal operation
• Seals for input and output connections
• Improved Head Pressure Performance over DCP Models
• New Enclosed Impeller Design For a more Quiet Operation
• Energy Saving up to 65%
• IC Electronic Detection- Automatic Power Off Protection Upon No Water
• Wear Resistant Ceramic Shaft

Features

DCP-2500 (23W)

Maximum flow rate of up to 2,500 litres/hour - adjustable from 750 - 2,500 litre/hour

DCP-4000 (33W)

Maximum flow rate of up to 4,000 litres/hour - adjustable from 1,200 - 4,000 litres per hour

DCP-6500 (55W)

Maximum flow rate of up to 6,500 litres/hour - adjustable from 1,950 - 6,000 litres per hour

DCP-8000 (65W)

Maximum flow rate of up to 8,000 litres/hour - adjustable from 2,400 - 8,000 litres per hour

DCP-10000 (80W)

Maximum flow rate of up to 10,000 litres/hour - adjustable from 3,000 - 10,000 litres per hour

DCP-13000 (95W)

Maximum flow rate of up to 13,000 litres/hour - adjustable from 3,900 - 13,000 litres per hour

DCP-15000 (105W)

Maximum flow rate of up to 15,000 litres/hour - adjustable from 4,500 - 15,000 litres per hour

DCP-18000 (145W)

Maximum flow rate of up to 18,000 litres/hour - adjustable from 5,400 - 18,000 litres per hour in

DCP-20000 (170W)

Maximum flow rate of up to 20,000 litres/hour - adjustable from 8,000 - 20,000 litres per hour in

• Electronic detection of no water enables automatic power off protection
• Motor protection if rotor is blocked
• Can be used in Marine and Freshwater applications
• No copper elements
• Long operation life is achieved by the use of wear resistant ceramic shaft
• Soft start operation - pump gradually builds up to set flow rate
• Feed mode disables pump for 10 minutes
• Speed settings (30% - 100%) in 1Watt steps with power consumption indication - setting is retained if power is lost.

Dimensions

DCP-2500 = 103 x 73 x 98  L x W x H (mm)

DCP-4000 = 158 x 80 x 128  L x W x H (mm)

DCP-6500 = 196 x 104 x 163  L x W x H (mm)

DCP-8000 = 196 x 104 x 163  L x W x H (mm)

DCP-10000 = 196 x 104 x 163  L x W x H (mm)

DCP-13000 = 196 x 104 x 163 L x W x H (mm)

DCP-15000 = 223 x 126 x 192  L x W x H (mm)

DCP-18000 = 223 x 126 x 192  L x W x H (mm)

DCP-20000 = 223 x 126 x 192  L x W x H (mm)

Whats Included

• DCP Pump
• Sine Wave technology Controller
• Power adapter with Uk plug
• Connectors for rigid pipe
• Hosetail Connectors for flexible tube
• Inlet filter
• Instructions

Flow Chart

Error codes

Er01: Abnormal Working current; Check if the pump voltage is correct or the controller is broken
Er02: Controller overheating; Check whether the controller is exposed to sunshine or in a high-temperature environment
Er03: Pump idling; Check if the pump is running dry
Er04: The impeller stops running; Check if the pump  voltage is correct or the controller is broken
Er05: Abnormal Working voltage. Check the input supplying voltage
