Oase ProfiClear Premium DF-XL gravity OC Spare Parts

+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
Oase ProfiClear Premium DF-XL Gravity OC 1
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

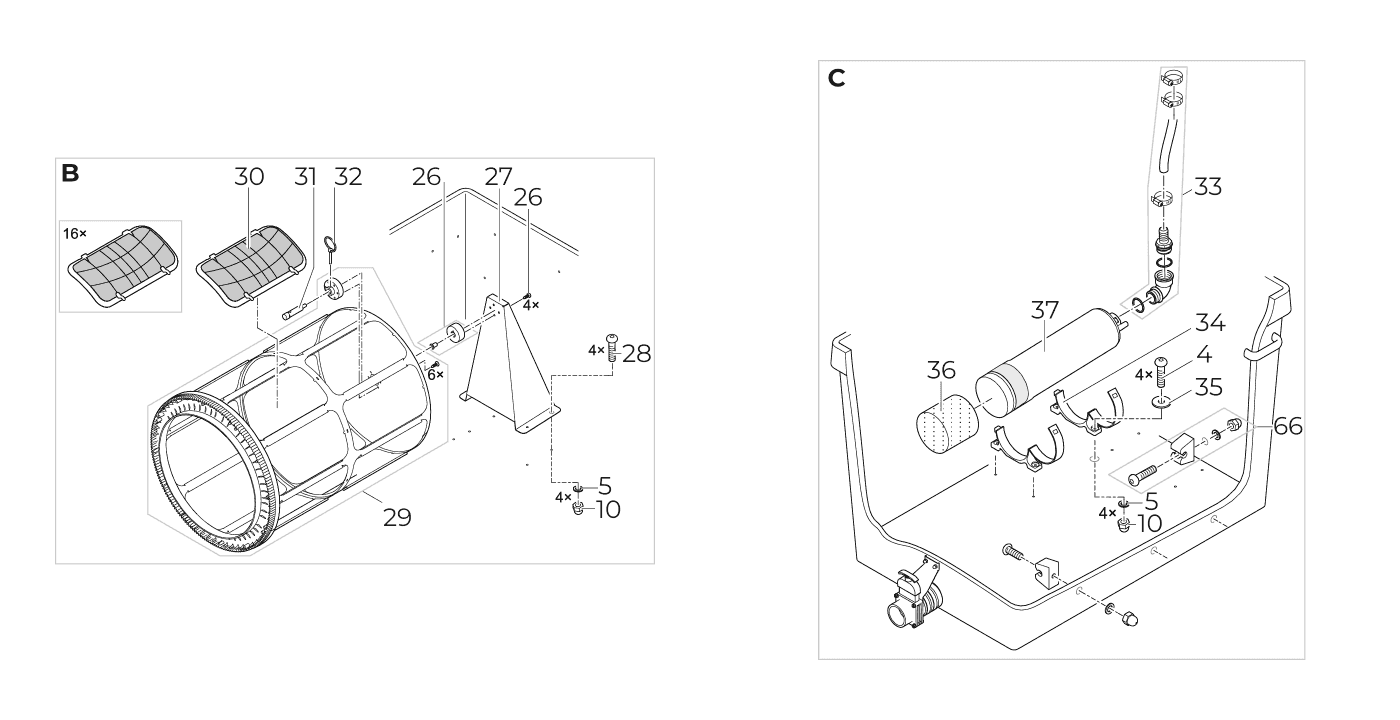

Oase ProfiClear Premium DF-XL Gravity OC 2
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+

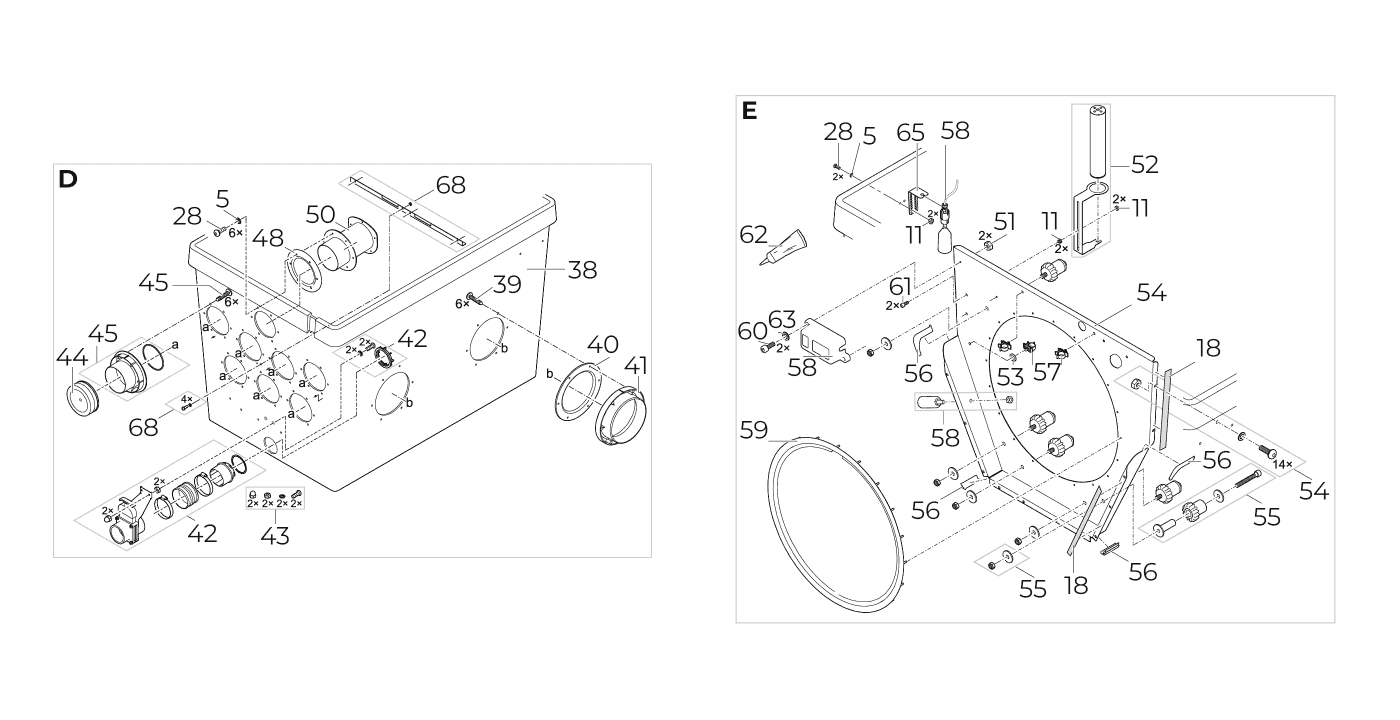

Oase ProfiClear Premium DF-XL Gravity OC 3
Pos.ProductSKUQuantity
1 ASM cover drum filter XL 70995 1
2 Spare ASM drum motor 71771 1
3 Screw V4A DIN 912 M6 x 10 15596 1
4 Oval head screw Torx V2A ISO14583 M6x25 70425 1
5 Fiberplate DIN 7603 6 x 12 x 1 mm 20609 1
6 Strap grip PA black 35676 1
7 Spare set ASM gland seal 43867 1
8 Cover cap nut M6 49847 1
10 Cap nut V2A DIN 1587 M6 6117 1
11 Lock nut V2A DIN 985 M6 6128 1
12 Spare controller drum filter XL 77508 1
13 Fuse T16A 250 V 72543 1
14 Gasket waste channel DF XL gutter 73654 1
15 Oval head screw Torx V2A ISO14583 M6x12 70426 1
16 Waste channel DF XL gutter 73652 1
17 Cable protection Quintet / drum filter 11979 1
18 Foamed rubber band drum filter 2018 41300 1
19 Power supply 100 VA / 12 V DC 8A V-2021 76197 1
20 Spike 20284 1
21 Cover cleaning tube VA DF XL 77514 1
22 Spare cleaning tube bracket PCP 2017 49035 1
23 Spare hose bracket ProfiClear Premium 18790 1
24 ASM cleaning tube DF XL 72610 1
25 Spare nozzle ProfiClear Premium 18797 1
26 Spare drum bearing drum filter 18791 1
27 Spare drum bearing truss XL 77511 1
28 Oval head screw Torx V2A ISO14583 M6x16 70424 1
29 Spare drum drum filter XL 77512 1
30 ASM sieve frame 60 µm 22005 1
31 Drum shaft 16288 1
32 Locking pin V2A DIN 11023 - 6 mm 19515 1
33 Spare connector rinse pump DF XL 77513 1
34 Fastening kit rinse pump 17043 1
35 Washer VA DIN 9021 6.4 6143 1
36 Pre-filter rinse pump 18943 1
37 Rinse pump drum filter XL 73457 1
38 Container XL drum filter gravity 72590 1
39 Oval head screw Torx V2A ISO14585 6.3x32 70428 1
40 Gasket mesh tube 2016 43756 1
41 Outlet 150/2 ProfiClear M 2 - M 5 26987 1
42 Spare drain DN75 XL 70636 1
43 spare screw set drain DN75 Premium 18448 1
44 Blanking cap DN 110 16387 1
45 Spare connection set DN110 short 77507 1
48 Gasket waste channel DF XL connector 73653 1
50 Waste channel DF XL connector 73651 1
51 Safety nut V2A DIN 985 M4 11113 1
52 ASM tube float switch gravity drum filt. 42872 1
53 O-Ring EPDM 6 x 1.5 SH70 A 19023 1
54 Spare seperating wall DF XL pumped 77509 1
55 Spare plain roller drum filter 18794 1
56 Spare gasket set sep.wall drum filter XL 77510 1
57 Cable holder drum filter 19402 1
58 ASM signal box DF Gravity 2017 43493 1
59 Spare drum gasket 23192 1
60 Cylinder screw V2A DIN 912 M4 x 20 20320 1
61 Cylinder screw V2A DIN 912 6 x 16 5949 1
62 Turmsilon GTI 300 GK tube 10 ml 27872 1
63 Washer V2A DIN 125 4.3 6133 1
65 Mounting plate float switch PCP Gravi.II 48250 1
66 Cable holder drum filter screwable 9 mm 72598 1
67 Truss drum filter XL Gravity 77482 1
68 Hexagon nut V2A DIN 934 M6 6105 1
  • ASM cover drum filter XL
    Oase - Spares ASM cover drum filter XL
    £403.58
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare ASM drum motor
    Oase - Spares Spare ASM drum motor
    £597.38
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Screw V4A DIN 912 M6 x 10
    Oase - Spares Screw V4A DIN 912 M6 x 10
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Oval head screw Torx V2A ISO14583 M6x25
    Oase - Spares Oval head screw Torx V2A ISO14583 M6x25
    £0.98
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Fiberplate DIN 7603 6 x 12 x 1 mm
    Oase - Spares Fiberplate DIN 7603 6 x 12 x 1 mm
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Strap grip PA black
    Oase - Spares Strap grip PA black
    £12.41
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare set ASM gland seal
    Oase - Spares Spare set ASM gland seal
    £3.15
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cover cap nut M6
    Oase - Spares Cover cap nut M6
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cap nut V2A DIN 1587 M6
    Oase - Spares Cap nut V2A DIN 1587 M6
    £0.38
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Lock nut V2A DIN 985 M6
    Oase - Spares Lock nut V2A DIN 985 M6
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare controller drum filter XL
    Oase - Spares Spare controller drum filter XL
    £528.28
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Fuse T16A 250 V
    Oase - Spares Fuse T16A 250 V
    £2.13
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Gasket waste channel DF XL gutter
    Oase - Spares Gasket waste channel DF XL gutter
    £9.61
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Oval head screw Torx V2A ISO14583 M6x12
    Oase - Spares Oval head screw Torx V2A ISO14583 M6x12
    £0.98
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Waste channel DF XL gutter
    Oase - Spares Waste channel DF XL gutter
    £392.19
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cable protection Quintet / drum filter (PER METRE)
    Oase - Spares Cable protection Quintet / drum filter (PER METRE)
    £2.13
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • ASM Power supply 100 VA / 12 V DC
    Oase - Spares ASM Power supply 100 VA / 12 V DC
    £222.19
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spike
    Oase - Spares Spike
    £3.83
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cover cleaning tube VA DF XL
    Oase - Spares Cover cleaning tube VA DF XL
    £171.11
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare cleaning tube bracket PCP 2017
    Oase - Spares Spare cleaning tube bracket PCP 2017
    £4.85
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare hose bracket ProfiClear Premium
    Oase - Spares Spare hose bracket ProfiClear Premium
    £7.48
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • ASM cleaning tube DF XL
    Oase - Spares ASM cleaning tube DF XL
    £146.20
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare nozzle ProfiClear Premium
    Oase - Spares Spare nozzle ProfiClear Premium
    £20.32
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare drum bearing drum filter
    Oase - Spares Spare drum bearing drum filter
    £51.00
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare drum bearing truss XL
    Oase - Spares Spare drum bearing truss XL
    £99.71
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Oval head screw Torx V2A ISO14583 M6x16
    Oase - Spares Oval head screw Torx V2A ISO14583 M6x16
    £0.98
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare drum drum filter XL
    Oase - Spares Spare drum drum filter XL
    £1,839.66
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Drum shaft
    Oase - Spares Drum shaft
    £44.12
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Locking pin V2A DIN 11023 - 6 mm
    Oase - Spares Locking pin V2A DIN 11023 - 6 mm
    £11.31
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare connector rinse pump DF XL
    Oase - Spares Spare connector rinse pump DF XL
    £22.61
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Bearing safety slush pump
    Oase - Spares Bearing safety slush pump
    £24.99
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Washer VA DIN 9021 6.4
    Oase - Spares Washer VA DIN 9021 6.4
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Pre-filter scavenging pump
    Oase - Spares Pre-filter scavenging pump
    £14.71
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Rinse pump drum filter XL
    Oase - Spares Rinse pump drum filter XL
    £1,009.97
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Container XL drum filter gravity
    Oase - Spares Container XL drum filter gravity
    £1,172.07
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Oval head screw Torx V2A ISO14585 6.3x32
    Oase - Spares Oval head screw Torx V2A ISO14585 6.3x32
    £0.98
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Gasket mesh tube 2016
    Oase - Spares Gasket mesh tube 2016
    £18.11
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Outlet 150/2 ProfiClear M 2 - M 5
    Oase - Spares Outlet 150/2 ProfiClear M 2 - M 5
    £11.31
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare drain DN75 XL
    Oase - Spares Spare drain DN75 XL
    £75.91
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare screws drain DN75 Premium
    Oase - Spares Spare screws drain DN75 Premium
    £4.34
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Clothing cap DN 110
    Oase - Spares Clothing cap DN 110
    £7.48
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare connection set DN110 short
    Oase - Spares Spare connection set DN110 short
    £18.11
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Gasket waste channel DF XL connector
    Oase - Spares Gasket waste channel DF XL connector
    £8.59
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Waste channel DF XL connector
    Oase - Spares Waste channel DF XL connector
    £260.78
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Safety nut V2A DIN 985 M4
    Oase - Spares Safety nut V2A DIN 985 M4
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • ASM tube float switch gravity drum filt.
    Oase - Spares ASM tube float switch gravity drum filt.
    £6.46
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • O-Ring EPDM 6 x 1.5 SH70 A
    Oase - Spares O-Ring EPDM 6 x 1.5 SH70 A
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare seperating wall DF XL pumped
    Oase - Spares Spare seperating wall DF XL pumped
    £233.50
    Email Me View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare plain roller drum filter
    Oase - Spares Spare plain roller drum filter
    £74.89
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare gasket set sep.wall drum filter XL
    Oase - Spares Spare gasket set sep.wall drum filter XL
    £8.59
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cable holder drum filter
    Oase - Spares Cable holder drum filter
    £2.13
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • ASM signal box DF Gravity 2017
    Oase - Spares ASM signal box DF Gravity 2017
    £156.40
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Spare drum gasket DF-XL gravity OC
    Oase - Spares Spare drum gasket DF-XL gravity OC
    £170.09
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cylinder screw V2A DIN 912 M4 x 20
    Oase - Spares Cylinder screw V2A DIN 912 M4 x 20
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cylinder screw V2A DIN 912 6 x 16
    Oase - Spares Cylinder screw V2A DIN 912 6 x 16
    £0.47
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Turmsilon GTI 300 GK tube 10 ml
    Oase - Spares Turmsilon GTI 300 GK tube 10 ml
    £6.46
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Washer V2A DIN 125 4.3
    Oase - Spares Washer V2A DIN 125 4.3
    £0.21
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Mounting plate float switch PCP Gravi.II
    Oase - Spares Mounting plate float switch PCP Gravi.II
    £8.59
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Cable holder drum filter screwable 9 mm
    Oase - Spares Cable holder drum filter screwable 9 mm
    £2.13
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Truss drum filter XL Gravity
    Oase - Spares Truss drum filter XL Gravity
    £11.31
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
  • Hexagon nut V2A DIN 934 M6
    Oase - Spares Hexagon nut V2A DIN 934 M6
    £0.30
    Buy View Add to wishlist
    Item added to wishlist
    Item removed from wishlist
