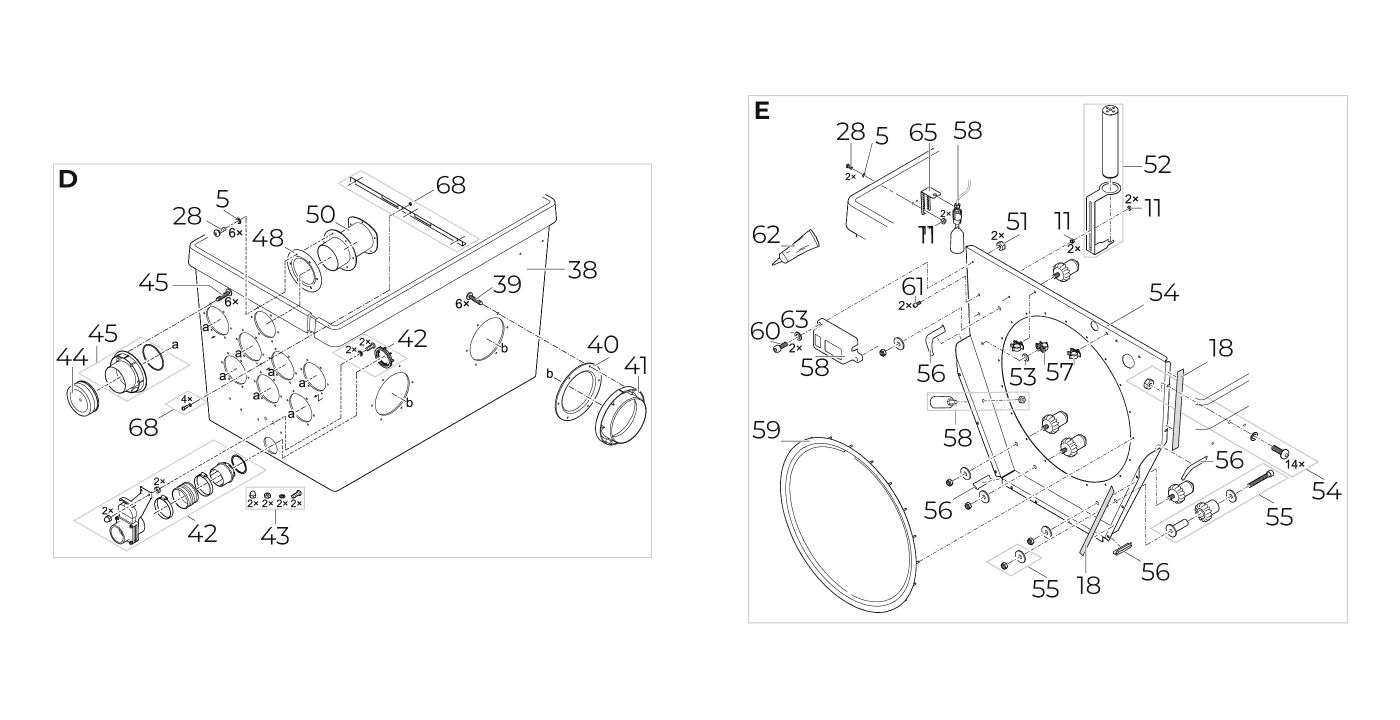

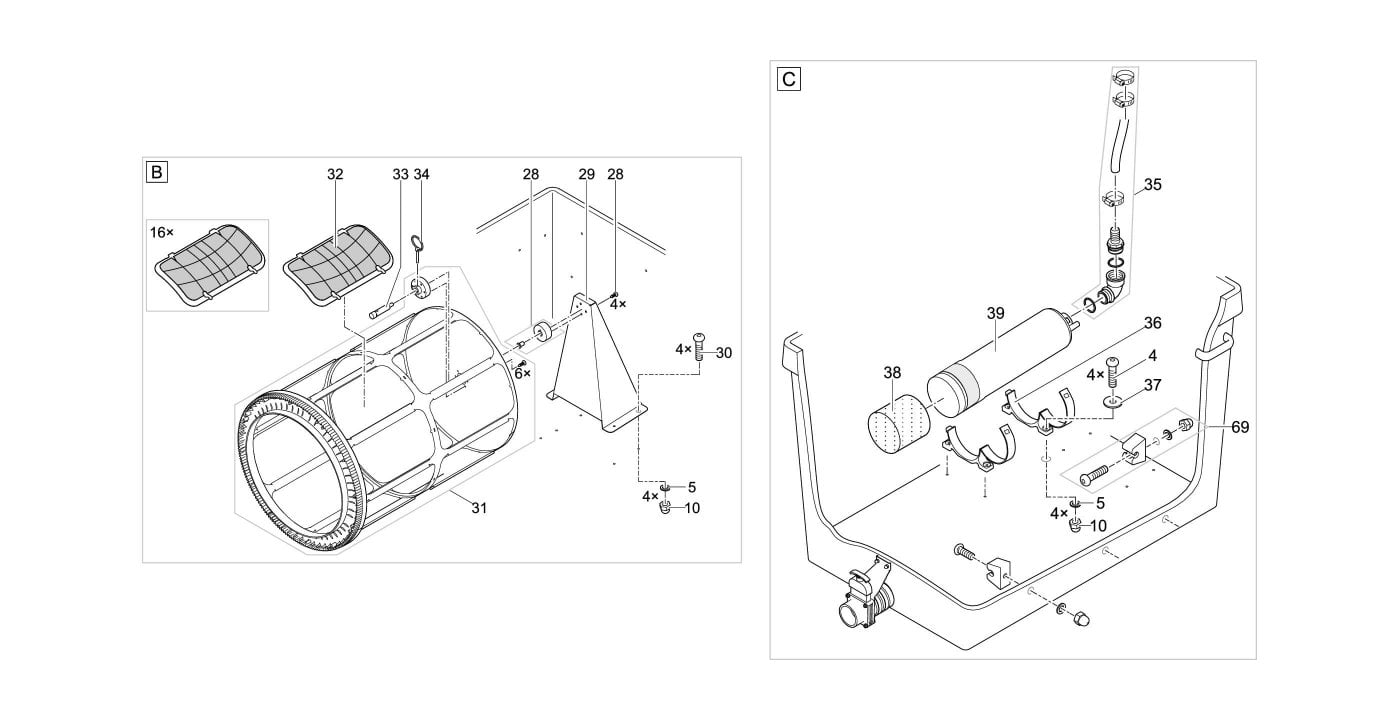

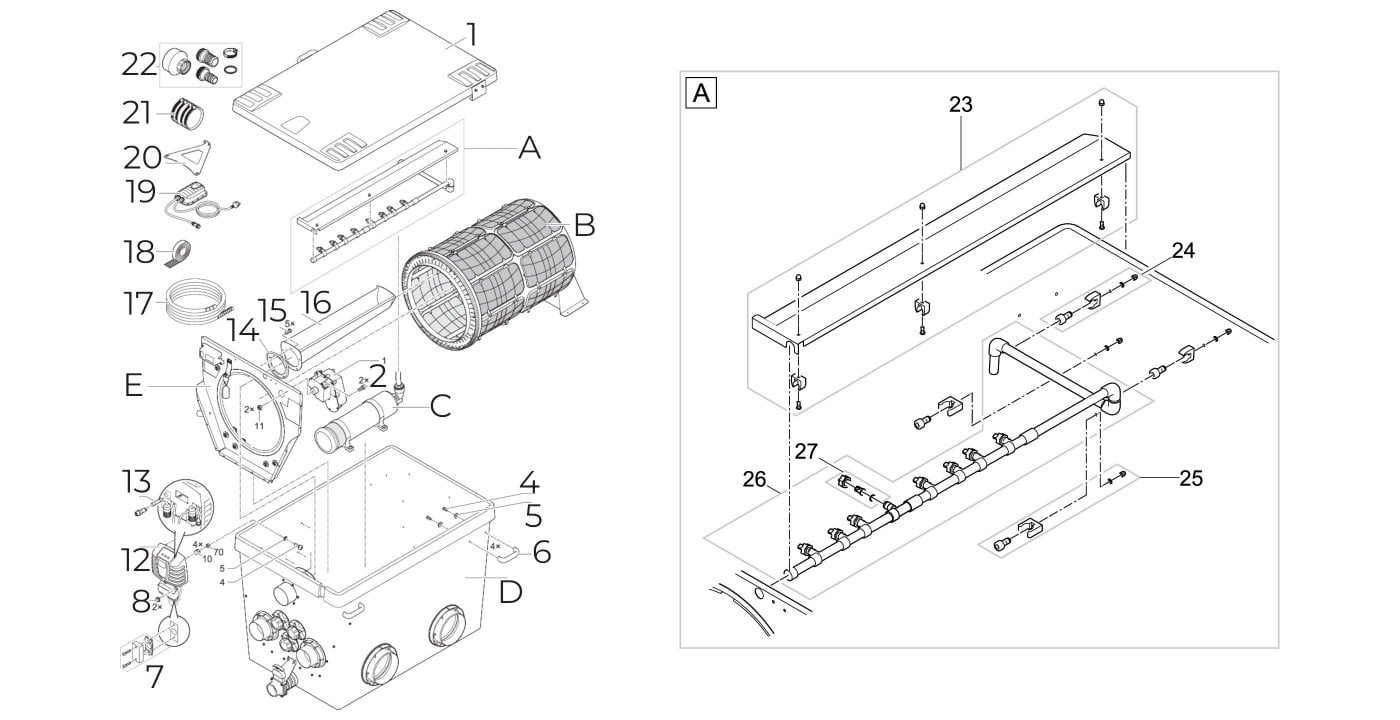

Oase ProfiClear Premium DF-XL Pump-Fed OC Spare Parts

Pos.	Product	SKU	Quantity
1	ASM cover drum filter XL	70995	1
2	Spare ASM drum motor	71771	1
3	Screw V4A DIN 912 M6 x 10	15596	1
4	Oval head screw Torx V2A ISO14583 M6x25	70425	1
5	Fiberplate DIN 7603 6 x 12 x 1 mm	20609	1
6	Strap grip PA black	35676	1
7	Spare set ASM gland seal	43867	1
8	Cover cap nut M6	49847	1
10	Cap nut V2A DIN 1587 M6	6117	1
11	Lock nut V2A DIN 985 M6	6128	1
12	Exchange controller drum fil.XL pump-fed	87115	1
13	Fuse T16A 250 V	72543	1
14	Gasket waste channel DF XL gutter	73654	1
15	Oval head screw Torx V2A ISO14583 M6x12	70426	1
16	Waste channel DF XL gutter	73652	1
17	Spare cable protection 0.85 m	90118	1
18	Foamed rubber band drum filter 2018	41300	1
19	Power supply 100 VA / 12 V DC 8A V-2021	76197	1
20	Triangle bracket Bitron Premium	76153	1
21	Rubber connection DN110 to DN110	73751	1
22	Adapter kit hose Bitron Premium	77191	1
23	Cover cleaning tube VA DF XL	77514	1
24	Spare cleaning tube bracket PCP 2017	49035	1
25	Spare hose bracket ProfiClear Premium	18790	1
26	ASM cleaning tube DF XL	72610	1
27	Spare nozzle ProfiClear Premium	18797	1
28	Spare drum bearing drum filter	18791	1
29	Spare drum bearing truss XL	77511	1
30	Oval head screw Torx V2A ISO14583 M6x16	70424	1
31	Spare drum drum filter XL	77512	1
32	ASM sieve frame 60 µm	22005	1
33	Drum shaft	16288	1
34	Locking pin V2A DIN 11023 - 6 mm	19515	1
35	Spare connector rinse pump DF XL	77513	1
36	Fastening kit rinse pump	17043	1
37	Washer VA DIN 9021 6.4	6143	1
38	Pre-filter rinse pump	18943	1
39	Rinse pump drum filter XL	73457	1
40	Spare grommet drum filter pump-fed	18798	1
41	Check valve 2"	48183	1
42	Retaining nut 2"	12097	1
43	Container XL drum filter pump-fed	72589	1
44	Oval head screw Torx V2A ISO14585 6.3x32	70428	1
45	Gasket mesh tube 2016	43756	1
46	Outlet 150/2 ProfiClear M 2 - M 5	26987	1
47	Spare drain DN75 XL	70636	1
48	spare screw set drain DN75 Premium	18448	1
49	Screw cap 2"	25993	1
50	Blanking cap DN 110	16387	1
51	Spare connection set DN110 short	77507	1
54	Gasket waste channel DF XL connector	73653	1
56	Waste channel DF XL connector	73651	1
57	Safety nut V2A DIN 985 M4	11113	1
58	Spare seperating wall DF XL pumped	77509	1
59	Spare plain roller drum filter	18794	1
60	Spare gasket set sep.wall drum filter XL	77510	1
61	Cable holder drum filter	19402	1
62	ASM signal box drum filter XL pump-fed	73649	1
63	Mounting plate float sw. DF XL pump fed	73645	1
64	Spare drum gasket	23192	1
65	Cylinder screw V2A DIN 912 M4 x 20	20320	1
66	Turmsilon GTI 300 GK tube 10 ml	27872	1
67	Washer V2A DIN 125 4.3	6133	1
68	Truss drum filter XL pump-fed	77222	1
69	Cable holder drum filter screwable 9 mm	72598	1
70	Hexagon nut V2A DIN 934 M6	6105	1
